Item # GAT10GS-10FJX90S
GATES 10GS-10FJX90 FITTINGS

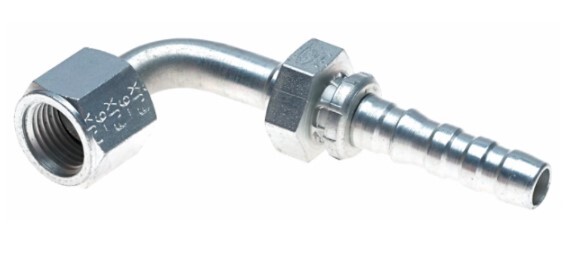

Click image to enlarge
Item # GAT10GS-10FJX90S
GATES 10GS-10FJX90 FITTINGS
- UM: EA
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. GlobalSpiral™ thread ends are able to handle working pressures up to 6,000 psi. Coated with TuffCoat® plating - more than five times better corrosion resistance than SAE ASTMB117 specification.
Specifications
| Thread 1 | 10 |
| Thread 2 | 10 |
| Material | Steel |
| Type | GS-FJXMM90 |
| Part Number | 10GS-10FJXMM90-036 |
×
