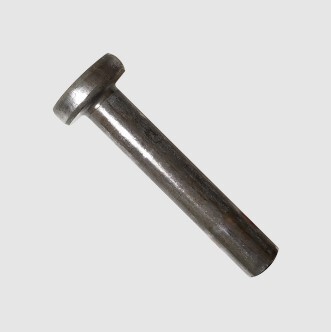

5/8" X 6 9/16"" Headed Concrete Anchor Weld Stud, Carbon Steel
Item # WSHCA5/8X69/16
5/8" X 6 9/16"" Headed Concrete Anchor Weld Stud, Carbon Steel
- UM: EA
Product Description
The 5/8" × 6-9/16" Headed Concrete Anchor Weld Stud is engineered for strength, reliability, and compliance with industry standards. Manufactured from ASTM A108 carbon steel, this stud is designed for permanent anchoring in precast and cast-in-place concrete applications. The forged head provides superior pull-out resistance, making it ideal for structural connections in construction and industrial settings.
Whether you're working on precast concrete panels, bridge decks, shear connectors, or embedded plates, this anchor weld stud delivers consistent performance in demanding environments.
Key Features & Benefits
- Precision Dimensions – 1/2" diameter x 10-1/8" overall length for accurate fit and application compatibility.
- High-Strength Carbon Steel – Made from ASTM A108 for durability and consistent weldability.
- Forged Head Design – Ensures strong mechanical interlock with concrete, maximizing load capacity.
- Reliable Weld Performance – Designed for use with drawn-arc stud welding equipment.
- Industry Compliance – Meets AWS D1.1 and ACI 318 recommendations for headed stud anchors.
- Versatile Applications – Ideal for precast panels, shear connectors, steel structures, and embedded plates.
- Fast Availability – In-stock for quick delivery to keep projects on schedule.
Technical Specifications
| Specification | Detail |
|---|---|
| Item Number | WSHCA5/8X69/16 |
| Diameter | 5/8" |
| Overall Length | 6-9/16" |
| Material | Carbon Steel (ASTM A108) |
| Head Diameter | 1" |
| Head Height | 3/8" |
| Weld Base | Flat, flanged |
| Standards | AWS D1.1, ACI 318 |
| Finish | Plain |
| Applications | Precast concrete, shear connectors, embedded plates |
Common Uses
- Precast concrete panel connections
- Bridge deck shear connectors
- Structural steel to concrete connections
- Industrial and commercial building projects
Specifications
| Diameter | 5/8 |
| Overall Length | 6 9/16 |
| Length after weld | 6-3/8" |
| Material | Carbon Steel (ASTM A108) |
| Head diameter | 1-1/4" |
| Head height | 5/16" |
| Weld base | Flat, flanged |
| Standards | ASTM A108, AWS D1.1, ACI 318 |
| Finish | Plain |
| Applications | Precast concrete panels, bridge deck shear connectors, steel-to-concrete construction |
