1/2" X 8 1/8" HEADED CONCRETE ANCHOR WELD STUD, CARBON STEEL
Item # WSHCA1/2X81/8
1/2" X 8 1/8" HEADED CONCRETE ANCHOR WELD STUD, CARBON STEEL
- UM: EA

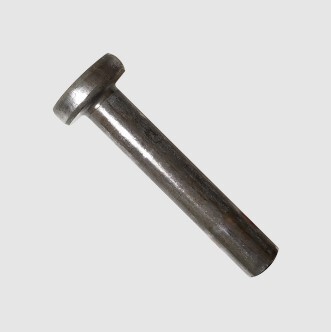

The WSHCA1/2X81/8 is a 1/2" diameter x 8 1/8" ASTM A108 carbon steel headed concrete anchor (HCA) weld stud designed for composite steel deck construction, precast concrete embedment, and structural shear connections. It is installed using the drawn arc stud welding process and meets AWS D1.1 Structural Welding Code and ASTM A108 requirements. Standard material for interior structural concrete and composite deck applications.
| Specification | Value |
|---|---|
| Stud Diameter | 1/2" |
| Overall Length | 8 1/8" |
| Effective Weld Length | 8" |
| Head Diameter | 1" |
| Head Thickness | 5/16" |
| Material | Carbon Steel (ASTM A108) |
| Welding Process | Drawn Arc (DA) |
| Welding Code | AWS D1.1 |
Common Applications: Composite steel deck construction, precast concrete embedment, bridge deck shear connectors, steel-to-concrete moment connections, curtain wall anchoring, and structural steel connections requiring headed anchors per ACI 318.
Technical Resources:
- Headed Concrete Anchor / Shear Connector Selection Guide
- Weld Stud Ferrule Sizing Chart — match the correct ferrule to this stud diameter
- Threaded / Headed Studs Selection Guide
Need project pricing or help with stud selection? Call (541) 342-5978 or request a quote.
Specifications
| Diameter | 1/2 |
| Length | 8 1/8 |
| Material | 8" |
| Type | Carbon Steel (ASTM A108) |
| Part Number | 1" |
| Head height | 5/16" |
| Weld base | Flat, flanged |
| Standards | ASTM A108, AWS D1.1, ACI 318 |
| Finish | Plain |
| Applications | Precast concrete panels, bridge deck shear connectors, steel-to-concrete construction |
